PicoScope 4425A 4-Channel Standard Kit


Add to cart

Request a call

Click to see additional Options / Models / Accessories Available


Click to view California Proposition 65 warning


The PicoScope 4-Channel Standard kit allows efficient voltage and current analysis of vehicle electrical and electronic systems to quickly find and confirm a wide range of potential faults. Powered by the PicoScope 4425A 4-channel, diagnostic oscilloscope, which features an industry-leading 400MS/s sampling rate, 250MS memory and our new PicoBNC+ intelligent lead connection technology, the kit is ideal for viewing signals from the ignition system, sensors, actuators and communications networks, as well as CAN and FlexRay protocol decoding.

The PicoScope 4425A connects to a PC via USB connection for user control and high-resolution waveform display. PicoScope operating software provides many powerful tools for waveform analysis and allows users to access a built-in database of Guided Tests and reference waveforms.

    Typical Applications:
  • Test vehicle components/systems with minimal teardown
  • Find troublesome intermittent faults.
  • Investigate issues with no, multiple, or misleading fault codes.
  • Diagnose charging and starting faults.
  • Trace problems with actuators not monitored by the ECU
  • Identify mechanical problems
  • Develop objective data for manager/customer discussions
  • Part of proven NVH solution

Kit Includes:
  • (1) PicoScope 4425A 4-Channel Automotive Oscilloscope
  • (1) 1.8m USB 3.0 Cable
  • (1) 4.5m USB 2.0 Cable
  • (1) PicoBNC+ 3M Test Lead Set, Blue, Red, Green, Yellow
  • (1) PicoBNC+ Automotive 10:1 Scope Probe & Adaptor
  • (1) S Hook
  • (1) Breakout Lead For ATC Style Fuses
  • (1) Extension Lead For Mini Style Fuses
  • (1) Probe & Clip Kit, Black
  • (1) Probe & Clip Kit, Red
  • (1) Electronics Acupuncture Probes
  • (1) PicoBNC+ Current Clamp: 2000A AC/DC
  • (1) PicoBNC+ Current Clamp: 60A AC/DC
  • (2) HT Extension Lead
  • (1) Earth Wire For Coil Pack
  • (2) PicoBNC+ Secondary Ignition Pickup
  • (1) PicoBNC+ COP & Signal Probe
  • (1) Carry Case


    Support Documentation

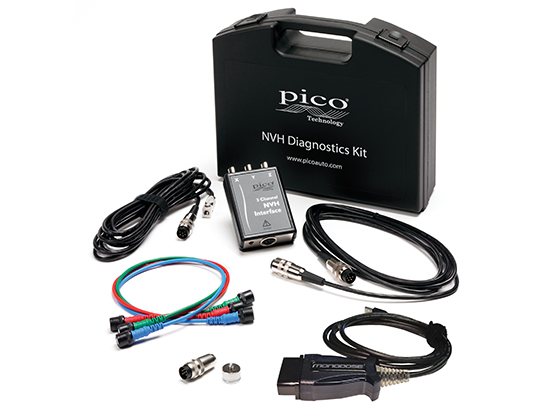

    • Accessory kits available for NVH and Pressure Transducer.
    • 24 month warranty.
    • Software updates are free for life.
    • Unlimited storage of waveforms and settings.
    • Use with any vehicle.
    • Certifications: Tested to meet EN 61326-1:2006 and FCC Part 15 Subpart B.
    • Environmental Approvals: RoHS and WEEE compliant.



    Weight approx. 13 lbs
    Power supply Powered from PC USB connection V/Hz/A
    Dimensions (L x W x H) 19 x 16 x 7 inch



    733-MI168 S hook $5.00 Add to cart
    733-PA038 QuadroPack telescopic plastic case $4.00 Add to cart
    733-PA209 4425A standard carry case $159.00 Add to cart
    733-PQ174 PicoScope 4425A 4-channel automotive oscilloscope w/USB cable $1,590.00 Add to cart
    733-TA001 Multimeter style test probe – black $7.00 Add to cart
    733-TA002 Multimeter style test probes – red $7.00 Add to cart
    733-TA003 Small crocodile clip – black $3.00 Add to cart
    733-TA004 Small crocodile clip – red $3.00 Add to cart
    733-TA008 Electronics acupuncture probes $54.00 Add to cart
    733-TA017 4mm shrouded to unshrouded adaptor – red $3.00 Add to cart
    733-TA034 Breakout lead for ATC style fuses $29.00 Add to cart
    733-TA035 Extension lead for mini style fuses $29.00 Add to cart
    733-TA037 HT extension lead $55.00 Add to cart
    733-TA157 Battery clip 4mm socket – red $3.00 Add to cart
    733-TA158 Battery clip 4mm socket – black $3.00 Add to cart
    733-TA161 Flexible back pinning probe – black $5.00 Add to cart
    733-TA162 Flexible back pinning probe – red $5.00 Add to cart
    733-TA388 PicoBNC+ 2000A AC/DC current clamp $368.00 Add to cart
    733-TA397 PicoBNC+ secondary Ignition pickup lead $80.00 Add to cart
    733-TA398 PicoBNC+ COP and signal probe $255.00 Add to cart
    733-TA404 PicoBNC+ test lead, 3M blue $73.00 Add to cart
    733-TA405 PicoBNC+ test lead, 3M red $73.00 Add to cart
    733-TA406 PicoBNC+ test lead, 3M green $73.00 Add to cart
    733-TA407 PicoBNC+ test lead, 3M yellow $73.00 Add to cart
    733-TA473 PicoBNC+ 60A AC/DC current clamp $368.00 Add to cart
    733-TA506 PicoBNC+ 10:1 Attenuating Lead $91.00 Add to cart
